- Full-Size High-Dynamic Platform At 173 cm and 75 to 85 kg depending on edition, the T800 is a full-size humanoid built for heavy-load, high-mobility work rather than for benchtop demonstration.
- 450 Nm Maximum Torque A listed maximum torque of 450 Nm is the actuation headroom behind the platform's heavy-load and high-dynamic positioning.
- Planetary Plus Linear Force Control Joints The joint architecture combines planetary drives with linear force control, pairing torque density with force-controlled compliance.
- Hardware-Supported Speed Above 3 m/s EngineAI lists hardware-supported movement speed above 3 m/s, a figure that puts the T800 among the faster full-size humanoid platforms.
- Stereoscopic Vision and LiDAR Perception uses EngineAI's proprietary stereoscopic vision together with a LiDAR system, with Wi-Fi, Bluetooth, USB and LAN communication.
- Two Battery Options, 4 to 5 Hour Runtime A 71.4 V / 20 Ah ternary lithium pack charging in 2.5 hours, or an optional 74.8 V / 40 Ah solid-state pack charging in 3 hours, both listed at 4 to 5 hours per charge.
Description

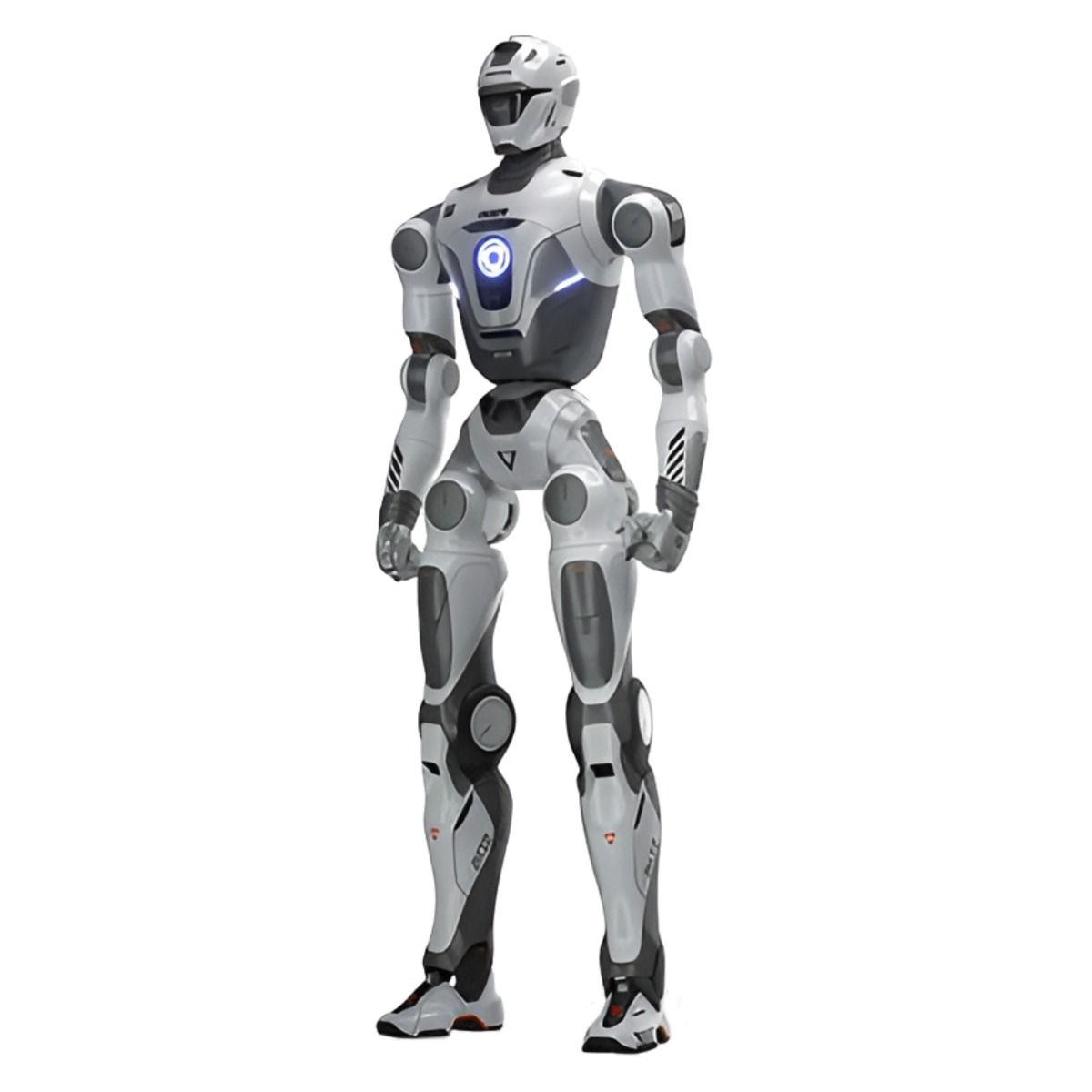

The EngineAI T800 is a full-size, high-dynamic general-purpose humanoid robot designed for heavy-load, high-mobility and complex real-world scenarios. This listing covers the Open Source Edition configuration, whose specifications follow the EngineAI Brand Book.
The robot stands 173 cm tall and weighs between 75 and 85 kg depending on edition, with 25 total degrees of freedom distributed as 6 per leg, 5 per arm, 2 in the neck and 1 at the waist. Joints combine planetary drives with linear force control and deliver a maximum torque of 450 Nm, and the hardware supports movement speeds above 3 m/s — the actuation figures behind the high-dynamic positioning. Note that hand degrees of freedom are listed as 0, so end effectors are not part of this configuration.
Perception runs on EngineAI's proprietary stereoscopic vision plus a LiDAR system, with Wi-Fi, Bluetooth, USB and LAN for communication. Power comes from a ternary lithium battery rated 71.4 V at full charge with 20 Ah capacity, or an optional solid-state battery rated 74.8 V at full charge with 40 Ah. EngineAI lists 4 to 5 hours of battery life per charge, with charging taking 2.5 hours for the ternary lithium pack and 3 hours for the solid-state option.
EngineAI positions the T800 platform for factory, logistics, retail, hotel, sports and advanced robotics research scenarios — environments where humanoid mobility, onboard perception and high-torque actuation are all required at once.
Every unit is sourced new through established distribution channels and arrives with the full manufacturer warranty. Robotix Market ships worldwide; after-sales support is coordinated with EngineAI's service network, and no on-site installation or commissioning is included.
Features
Specs
| Brand | EngineAI |
|---|---|
| Model | T800 Open Source Edition |
| Height | 173 cm |
| Weight | 75–85 kg depending on edition |
| Total Degrees of Freedom | 25 — 6 per leg, 5 per arm, 2 neck, 1 waist, 0 hand |
| Maximum Torque | 450 Nm |
| Movement Speed | Hardware-supported above 3 m/s |
| Joint Type | Planetary plus linear force control |
| Perception | Proprietary stereoscopic vision and LiDAR system |
| Battery | Ternary lithium 71.4 V / 20 Ah, or optional solid-state 74.8 V / 40 Ah; 4–5 h per charge |
Industries
Frequently Asked Questions
It is a full-size general-purpose humanoid robot positioned for factory, logistics, retail, hotel, sports and advanced robotics research scenarios — settings that need humanoid mobility, onboard perception and high-torque actuation together. The Open Source Edition is the configuration based on the EngineAI Brand Book specifications.
Not in this configuration. EngineAI lists hand degrees of freedom as 0 for the Open Source Edition, so the 25 total degrees of freedom are made up of 6 per leg, 5 per arm, 2 in the neck and 1 at the waist. If your application requires end effectors, raise that with our team when requesting a quote.
The standard pack is a ternary lithium battery at 71.4 V full charge with 20 Ah capacity; a solid-state battery at 74.8 V full charge with 40 Ah is optional. Both are listed at 4 to 5 hours of battery life per charge, with charging taking 2.5 hours for the ternary lithium pack and 3 hours for the solid-state option.
The manufacturer's listed price is USD 54,000, and EngineAI notes that availability is subject to confirmation. That figure moves with configuration, destination country, duties and freight, so request a quote through the product page for a firm delivered price and current lead time.
The robot is sourced new through established distribution channels and arrives with the full manufacturer warranty. Robotix Market ships worldwide, and after-sales support is coordinated with EngineAI's service network. On-site installation and commissioning are not included.
