- Binocular depth vision The head camera covers 146° horizontally and 124° vertically and provides both RGB and depth-map streams.
- 10 TOPS in the head An 8-core CPU with 10 TOPS of AI compute processes vision next to the cameras it serves.
- Cameras that aim A 2-DOF neck and a ±150° waist point the cameras at the work instead of relying on a fixed view.
- Wrist camera option Unitree offers a wrist camera for close-up views while grasping; its inclusion in Smart B is confirmed on the quotation.
- Seven-joint arms Two 7-DOF arms with 555 mm of reach carry 2–4 kg each depending on posture.
- Compute upgrade path An optional high-computing module, such as an Orin-class board, adds 40–100 TOPS for heavier models.
Description

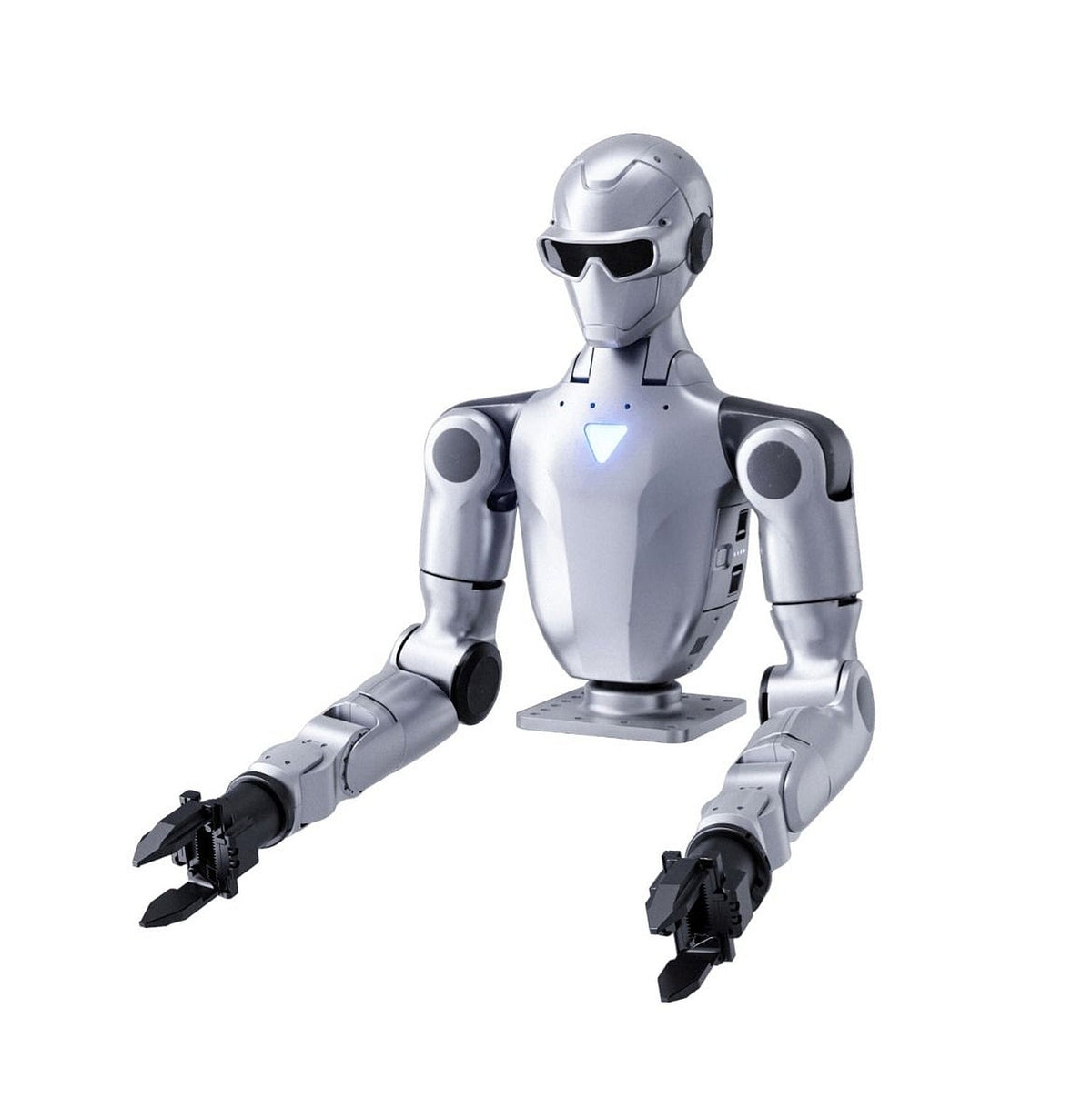

The Unitree R1-A7 Smart B is a Smart package of the R1-A7, Unitree's fixed-base dual-arm humanoid with seven-joint arms. Its head is where most of the perception happens: a binocular camera with a 146° horizontal and 124° vertical field of view and 60 mm between the lenses, delivering RGB and depth-map streams to a head computer with an 8-core CPU and 10 TOPS of AI compute.
Because the head pans ±115° and tilts ±36°, and the waist turns ±150°, the cameras are pointed at the work instead of relying on a fixed overhead view, and the depth stream gives grasp planning a measured distance to each object. A second 8-core CPU in the body runs the arms. Unitree also offers a wrist camera for close-up views during grasping, and a high-computing module, such as an Orin-class board with 40–100 TOPS, for heavier vision models.
Whether Smart B includes the wrist camera or a high-computing module, and which end effector it carries (two-finger gripper, three-finger or five-finger dexterous hand), is itemised on the quotation. The eight R1-A7 Smart packages, A to H, all share the robot described here and differ in those bundled items.
Mechanically Smart B is the standard R1-A7: two 7-DOF arms with 555 mm of forearm and upper arm, 2–4 kg of arm payload depending on posture, ±0.1 mm end-clamp accuracy, about 13 kg and 835 × 357 × 190 mm. It has no chassis; the wheeled version with chassis LiDAR is the R1-A7-D.
Key Capabilities
- Binocular depth vision: The head camera covers 146° horizontally and 124° vertically and provides both RGB and depth-map streams.
- 10 TOPS in the head: An 8-core CPU with 10 TOPS of AI compute processes vision next to the cameras it serves.
- Cameras that aim: A 2-DOF neck and a ±150° waist point the cameras at the work instead of relying on a fixed view.
- Wrist camera option: Unitree offers a wrist camera for close-up views while grasping; its inclusion in Smart B is confirmed on the quotation.
- Seven-joint arms: Two 7-DOF arms with 555 mm of reach carry 2–4 kg each depending on posture.
- Compute upgrade path: An optional high-computing module, such as an Orin-class board, adds 40–100 TOPS for heavier models.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the full manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Features
Specs
| Brand | Unitree Robotics |
|---|---|
| Model | R1-A7 Smart B |
| Package | One of eight R1-A7 Smart packages (Smart A to Smart H) |
| Robot Type | Dual-arm humanoid upper body (head, waist, two arms) — no legs |
| Base | Fixed base, no wheeled chassis (the wheeled version is the R1-A7-D) |
| Arm Degrees of Freedom | 7 per arm (7 × 2) |
| Waist Degrees of Freedom | 1 (yaw ±150°) |
| Head Degrees of Freedom | 2 (yaw ±115°, pitch ±36°) |
| Total Degrees of Freedom (with Gripper) | 19 |
| Forearm + Upper Arm Length | 555 mm |
| Dimensions | 835 × 357 × 190 mm |
| Weight | Approx. 13 kg (with external power supply) |
| Max Arm Payload | 2–4 kg (varies greatly with arm extension posture) |
| End-Clamp Accuracy | ±0.1 mm |
| Max Shoulder Torque | 60 N·m |
| End Effector Options | Two-finger gripper / three-finger dexterous hand / five-finger dexterous hand (1–7 DOF per end) |
| End Effector in Smart B | Confirm at quote |
| Camera | Binocular head camera (146° horizontal, 124° vertical FOV, 60 mm eye spacing; RGB and depth-map interfaces) |
| Wrist Camera | Optional — confirm at quote |
| Computing | Body: 8-core high-performance CPU; head: 8-core high-performance CPU + 10 TOPS |
| High-Computing Module | Optional, multiple brands and models, e.g. Orin (40–100 TOPS) — confirm at quote |
| Audio | 4-microphone array, dual speakers (3 W × 2) |
| Connectivity | WiFi 6, Bluetooth 5.2 |
| Joints | Low-inertia high-speed inner-rotor PMSM motors; crossed roller + deep groove ball output bearings; dual encoders (arm); hollow internal wiring; local air cooling |
| Power Supply | External power or Li-ion battery (battery in this package: confirm at quote) |
| Battery Life (Battery-Powered) | Approx. 1.5 h |
| Charger | Included |
| Software | Smart OTA updates; secondary development with open interfaces for the underlying system, arm, audio, lighting and visual control |
| Warranty | 12 months (manufacturer) |
Industries
Frequently Asked Questions
The Unitree R1-A7 Smart B Dual-Arm Humanoid Robot is priced at €14.700 in your market.
A binocular camera in the head with a 146° by 124° field of view and RGB and depth-map interfaces. Unitree offers a wrist camera as an option; whether one is part of Smart B is listed on the quotation.
Yes. The head computer has an 8-core CPU and 10 TOPS of AI compute. For heavier models Unitree offers a high-computing module, such as an Orin-class board with 40–100 TOPS; whether Smart B includes one is confirmed on the quotation.
The R1-A7 robot with its arms, waist, head, cameras, computers, microphones, speakers and charger, plus the Smart B items: the end effector and any wrist camera or high-computing module, each listed on the quotation.
No. The R1 Edu Smart is Unitree's walking R1 humanoid with legs. The R1-A7 Smart B is a dual-arm upper body on a fixed base, built for manipulation at a station.
It is sourced new through established distribution channels, ships worldwide and carries Unitree's 12-month manufacturer warranty, with technical support coordinated through Unitree's own service network. On-site installation is not included.
