- Fenceless collaborative operation Requires no safety fences, allowing operators to work directly alongside the robot and keeping the cell's footprint compact.
- Changeover in as little as 3 minutes Visualized process configuration lets product changeovers be completed in as little as 3 minutes, keeping multi-product lines moving.
- Zero-barrier tablet teaching Portable tablet-based teaching and a touchscreen-guided interface make setup quick and approachable even for users with no prior experience.
- 25 kg payload at 6–8 boxes/min Palletizes boxes up to 25 kg at a work rate of 6 to 8 boxes per minute, with an 1800 mm reach covering the pallet build area.
- Rigid lift column construction A brand-new lift column provides excellent rigidity and stability for consistent, repeatable stacking performance.
- Mobile, modular 1500 x 2100 mm cell Heavy-duty foot cups ground the station firmly during operation while large casters and the modular design make it easy to transport and quick to redeploy.
Descripción

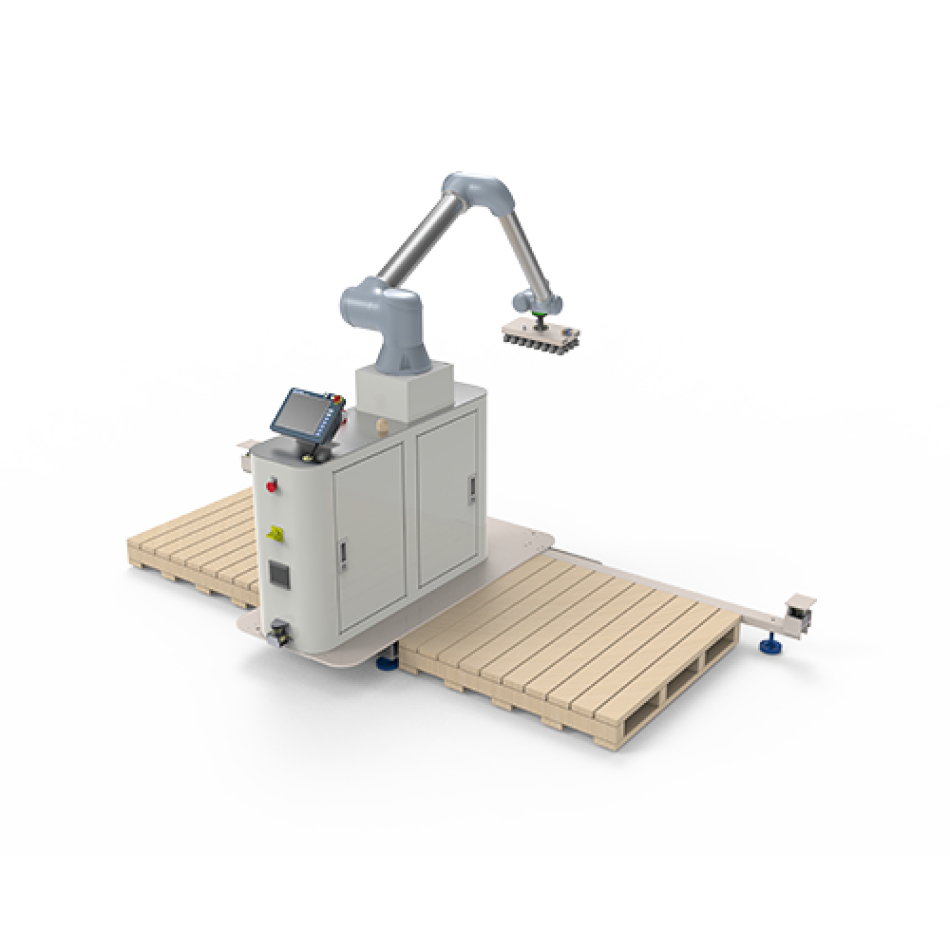

The SIASUN Palletizing Workstation is a DUCO-series collaborative palletizing cell built to make end-of-line palletizing effortless, pairing ultra-simple operation with rapid application deployment and a short return on investment. The station handles boxes up to 25 kg at a rate of 6 to 8 boxes per minute across an 1800 mm reach, all within a 1500 x 2100 mm floor space. A newly designed lift column gives the cell excellent rigidity and stability, a self-resetting button keeps day-to-day operation simple, and a touchscreen-guided interface walks users through setup even with no prior robotics experience, with a dedicated cable outlet providing both touchscreen cable storage and drag routing.
Because no safety fencing is required, operators can collaborate directly with the robot, and the modular design is easy to transport and quick to bring online: heavy-duty foot cups anchor the workstation firmly during operation while large casters make repositioning smooth when the line changes. Programming uses portable tablet-based teaching with visualized process configuration, so there are effectively zero entry barriers and product changeovers can be completed in as little as 3 minutes. The workstation suits palletizing duties across industries such as food, medical, and electronics, and is offered on a quotation basis with configuration confirmed per project.
Características
Especificaciones
| Brand | SIASUN |
|---|---|
| Model | Palletizing Workstation |
| Series | DUCO |
| Max Payload | 25 kg |
| Reach | 1800 mm |
| Work Efficiency | 6–8 boxes/min |
| Floor Space | 1500 mm x 2100 mm |
| Safety Concept | Collaborative operation, no safety fences required |
| Programming | Portable tablet-based teaching with visualized process configuration |
| Product Changeover | As little as 3 minutes |
| Mobility | Large casters with heavy-duty foot cups |
| Application Area | Palletizing |
Sectores
Preguntas frecuentes
It is a DUCO-series collaborative palletizing cell from SIASUN that automates end-of-line box palletizing. The station combines a rigid lift column, touchscreen-guided setup, tablet-based teaching, and a mobile modular base so palletizing tasks can be deployed rapidly with a short return on investment.
It palletizes boxes up to 25 kg at a work efficiency of 6 to 8 boxes per minute, with an 1800 mm reach and a compact floor space requirement of 1500 x 2100 mm.
No. The manufacturer designed it for fenceless collaborative operation, so operators can work directly with the robot. As with any collaborative deployment, confirm the safety requirements of your specific application during the quotation process.
Yes. The touchscreen-guided interface allows quick setup even for users with no prior experience, programming is done through portable tablet-based teaching with visualized process configuration, a self-resetting button keeps operation simple, and product changeovers take as little as 3 minutes.
The workstation is sold on a quotation basis, with availability, final configuration, and integration requirements confirmed before ordering. Request a quote through Robotix Market for pricing and shipping details; the system is covered by the manufacturer's warranty as provided by SIASUN, and we ship worldwide.
