- 10 kg payload with 700 mm reach Four-axis SCARA configuration covering a 700 mm working radius, sized for handling, sorting, assembly, and gluing tasks.
- Dual-support structure Provides larger load capacity, high rigidity, and low vibration for smooth, accurate motion even at higher speeds.
- Precision repeatability Rated at ±0.02 mm on J1 and J2, ±0.01 mm on J3, and ±0.01° on J4 for dependable accuracy in precision manufacturing.
- Modular series design The SA10A platform's modular architecture serves more automation scenarios while reducing maintenance costs.
- S series control cabinet and flexible programming Works with SIASUN's new-generation S series controller, supports multiple programming and teaching methods, and provides abundant user cables for expandability.
- Lightweight, space-saving deployment A compact body and lower overall height make installation simple and reduce space constraints on busy production lines.
Descrizione

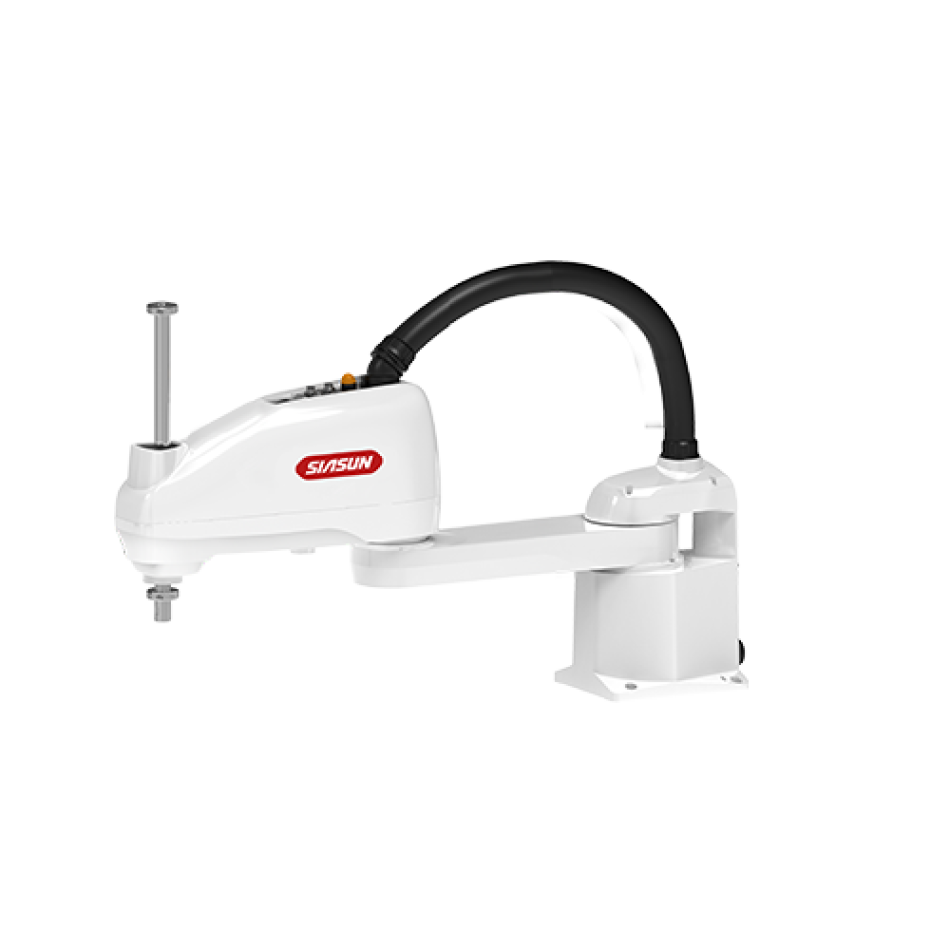

The SIASUN SA10A-10/0.70 is the extended-reach member of SIASUN's new-generation SA10A SCARA series, pairing a 10 kg payload with a 700 mm working radius across four axes. All-new proprietary core components and a dual-support structure give the arm enhanced load capacity, higher precision, faster speed, greater rigidity, and reduced vibration, while repeatability of ±0.02 mm on joints J1 and J2, ±0.01 mm on J3, and ±0.01° on J4 keeps placement consistent cycle after cycle. The series' modular design allows the platform to serve a wider range of automation scenarios while keeping maintenance costs down.
The SA10A-10/0.70 is built for handling, sorting, assembly, and gluing work, with its primary industries spanning 3C electronics, lithium battery, photovoltaic, and automotive electronics production. It operates with SIASUN's new-generation S series control cabinet, offers multiple programming and teaching methods, and includes abundant user cables to support expansion. Thanks to a lightweight, compact structure and a lower overall height, the robot is convenient to deploy even where space is constrained. It carries an IP20 protection rating and is supplied on a quotation basis, with configuration confirmed to your project requirements.
Caratteristiche
Specifiche
| Brand | SIASUN |
|---|---|
| Model | SA10A-10/0.70 |
| Type | SCARA robot |
| Payload | 10 kg |
| Reach | 700 mm |
| Degrees of Freedom | 4 |
| Repeatability | J1+J2 ±0.02 mm, J3 ±0.01 mm, J4 ±0.01° |
| Protection Rating | IP20 |
| Controller | New-generation S series control cabinet |
Settori industriali
Domande frequenti
It is a four-axis SCARA robot from SIASUN's new-generation SA10A series with a 10 kg payload and 700 mm reach. Built on all-new proprietary core components and a dual-support structure, it delivers enhanced load capacity, higher precision, faster speed, greater rigidity, and reduced vibration.
It handles the core SCARA application areas of handling, sorting, assembly, and gluing. Its primary industries include 3C electronics, lithium battery, photovoltaic, and automotive electronics manufacturing.
The two share the same SA10A platform, 10 kg payload, four-axis layout, and repeatability ratings. The SA10A-10/0.70 provides a longer 700 mm reach compared with 600 mm on the SA10A-10/0.60, making it the better fit when your workcell needs a larger working envelope.
The SA10A-10/0.70 pairs with SIASUN's new-generation S series control cabinet and supports multiple programming and teaching methods, with abundant user cables on the main unit for expandability.
It is available through Robotix Market on a request-for-quote basis: contact our team with your requirements and we will confirm pricing, configuration, and availability. The robot is covered by the manufacturer's warranty from SIASUN, and we ship worldwide.
