- 10 kg payload, 800 mm reach Four-axis SCARA configuration combines a 10 kg payload capacity with an 800 mm working reach for mid-duty planar automation tasks.
- Dual-support structure The dual-support mechanical design provides larger load capacity, high rigidity, and low vibration during high-speed motion.
- New proprietary core components All-new SIASUN-developed core components deliver higher precision, faster speed, and enhanced overall performance across the series.
- High repeatability Positioning repeatability of ±0.02 mm on J1+J2, ±0.01 mm on J3, and ±0.01° on J4 supports precision assembly and placement work.
- Modular, low-maintenance design The modular series architecture covers more automation scenarios while reducing long-term maintenance costs.
- Easy, space-saving deployment A lightweight, compact body with lower overall height simplifies deployment and reduces space constraints, backed by abundant user cables, the S series control cabinet, and multiple programming and teaching methods.
Descrizione

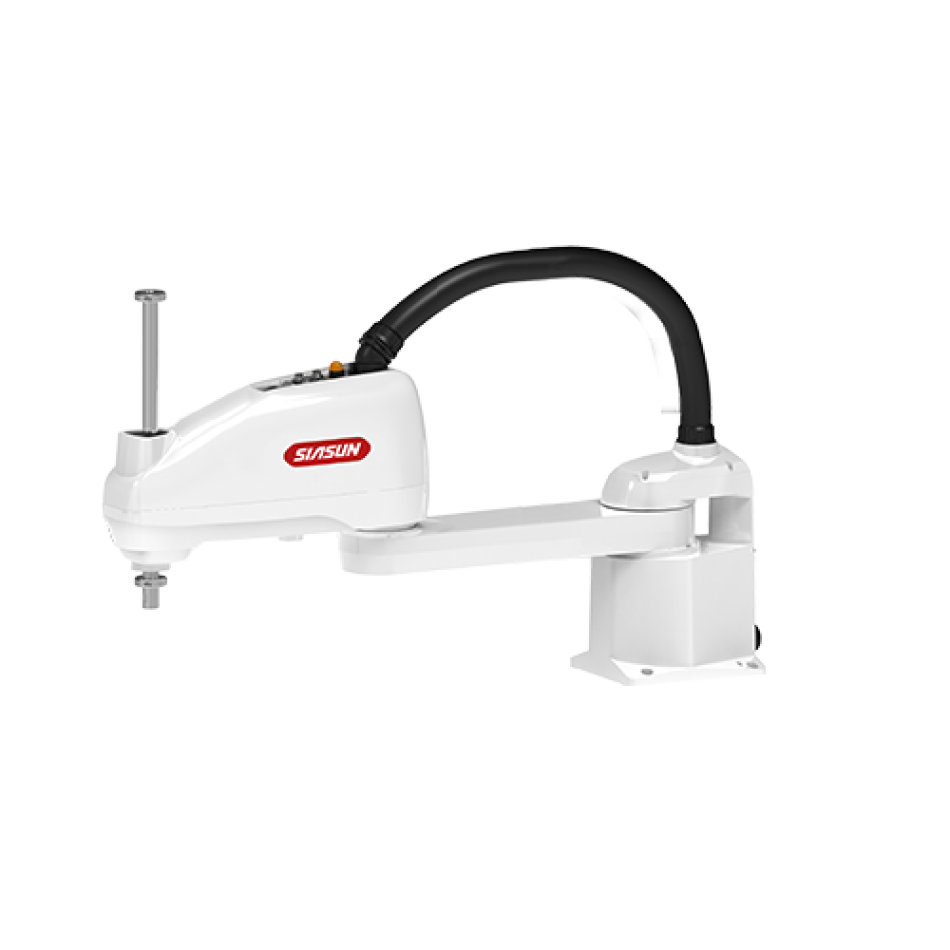

The SIASUN SA10A-10/0.80 is a four-axis SCARA robot from SIASUN's new-generation SA10A series, pairing a 10 kg payload with an 800 mm reach. Built around all-new proprietary core components and a dual-support structure, it delivers enhanced load capacity, higher precision, faster speeds, greater rigidity, and reduced vibration, with repeatability of ±0.02 mm on axes J1+J2 and ±0.01 mm on J3. The series follows a modular design that adapts to a broad range of automation scenarios while keeping maintenance costs down.
In production, the SA10A-10/0.80 handles handling, sorting, assembly, and gluing tasks, with its primary adoption in the 3C electronics, lithium battery, photovoltaic, and automotive electronics sectors. Deployment is deliberately simple: the main body is lightweight and compact, and the lower overall height reduces space constraints in tight production cells. Abundant user cables, the new-generation S series control cabinet, and support for multiple programming and teaching methods make the robot straightforward to integrate into new or existing lines.
Caratteristiche
Specifiche
| Brand | SIASUN |
|---|---|
| Model | SA10A-10/0.80 |
| Type | SCARA robot |
| Payload | 10 kg |
| Reach | 800 mm |
| Degrees of Freedom | 4 |
| Repeatability | J1+J2/±0.02 mm, J3/±0.01 mm, J4/±0.01° |
| Protection Rating | IP20 |
| Controller | New-generation S series control cabinet |
| Applications | Handling, sorting, assembly, gluing |
Settori industriali
Domande frequenti
The SA10A-10/0.80 is a four-axis SCARA robot from SIASUN's new-generation SA10A series. It offers a 10 kg payload, an 800 mm reach, repeatability of ±0.02 mm on J1+J2, and an IP20-rated body, built on a modular design with a dual-support structure for high rigidity and low vibration.
It is designed for handling, sorting, assembly, and gluing tasks. Its primary application industries include 3C electronics, lithium battery, photovoltaic, and automotive electronics manufacturing.
The V-Series is SIASUN's line of general-purpose industrial robot arms, while the SA10A-10/0.80 is a four-axis SCARA robot optimized for fast, precise planar tasks such as pick-and-place, sorting, assembly, and gluing within an 800 mm reach. If your process needs high-speed horizontal handling of parts up to 10 kg, the SCARA format is typically the better fit.
The robot is covered by SIASUN's manufacturer warranty, and Robotix Market ships worldwide. Contact our team for warranty terms and delivery details for your region.
Pricing is provided on request. Use the quote or inquiry form on Robotix Market and our team will respond with current pricing, availability, lead time, and shipping options for your location.
