- 360 kg payload with 2,830 mm reach Heavy-payload six-axis configuration moves large parts and tooling with ±0.01 mm repeatability.
- Backlash-free J5 axis A backlash-free reducer solution on the J5 axis delivers superior overall rigidity and reduces start-stop vibration.
- Over 10% faster spot-welding rhythm SIASUN's self-developed high-speed, high-torque motors lift spot-welding rhythm by more than 10%.
- No-counterweight body design Removing the counterweight reduces high-frequency moving parts, lowering failure probability and easing maintenance.
- Integration-ready control cabinet Supports mainstream communication protocols and reserves installation space for external axis drivers to simplify system integration.
- IP67-rated wrist Wrist protection to IP67 stands up to welding spatter, dust, and demanding industrial environments.
Descrizione
The SIASUN SR360A-360/2.83 is a heavy-payload configuration of SIASUN's SR360A six-axis platform, rated for 360 kg with a 2,830 mm reach and repeatability of ±0.01 mm. The design brings together high rigidity, high speed, easy maintenance, and easy deployment: a backlash-free gearbox on the J5 axis raises overall rigidity and suppresses start-stop vibration, while SIASUN's self-developed high-speed, high-torque motors increase spot-welding rhythm by more than 10%. An IP67-rated wrist keeps the business end protected in harsh production conditions.
The robot body follows a no-counterweight design that cuts down on high-frequency moving parts to lower failure rates, and the control cabinet supports mainstream communication protocols with reserved space for external axis drivers — making cell integration and production-line rollout straightforward. SIASUN positions the SR360A-360/2.83 for handling, assembly, gluing, machine loading and unloading, and spot welding, with platform case studies covering automotive welding assembly lines, LCD TV manufacturing, automated carton palletizing, flexible welding workstations, and intelligent welding systems for shipbuilding and engineering machinery.
Caratteristiche
Specifiche
| Brand | SIASUN |
|---|---|
| Model | SR360A-360/2.83 |
| Payload | 360 kg |
| Reach | 2830 mm |
| Repeatability | ±0.01 mm |
| Degrees of Freedom | 6 |
| Protection (Wrist) | IP67 |
| J5 Axis | Backlash-free gearbox |
| Body Design | No-counterweight architecture |
| Control Cabinet | Mainstream protocols, reserved space for external axis drivers |
| Application Area | Handling, assembly, gluing, loading and unloading, spot welding |
Settori industriali
Domande frequenti
It is a six-axis heavy-payload industrial robot from SIASUN's SR360A platform, rated for a 360 kg payload with a 2,830 mm reach and ±0.01 mm repeatability. It features a backlash-free J5 gearbox, self-developed high-torque motors, a no-counterweight body design, and an IP67-rated wrist.
SIASUN lists handling, assembly, gluing, loading and unloading, and spot welding as its application areas. Platform case studies include automotive welding assembly lines, LCD TV manufacturing, automated palletizing, and intelligent welding systems for ships and engineering machinery.
Both are configurations of the same SR360A platform with different payload-reach balances: the SR360A-360/2.83 carries a heavier 360 kg payload across a 2,830 mm reach, while the SR360A-280/3.20 carries 280 kg across a longer 3,200 mm reach. Pick the 360 kg version for heavier parts and tooling, or the 3.20 m version when your cell needs extra reach.
Pricing is provided on request. Submit a quote or inquiry through Robotix Market and our team will respond with current pricing, availability, and shipping details for your location.
The SR360A-360/2.83 is covered by the manufacturer's warranty as provided by SIASUN. Robotix Market ships worldwide — contact us for delivery terms and lead times to your country.

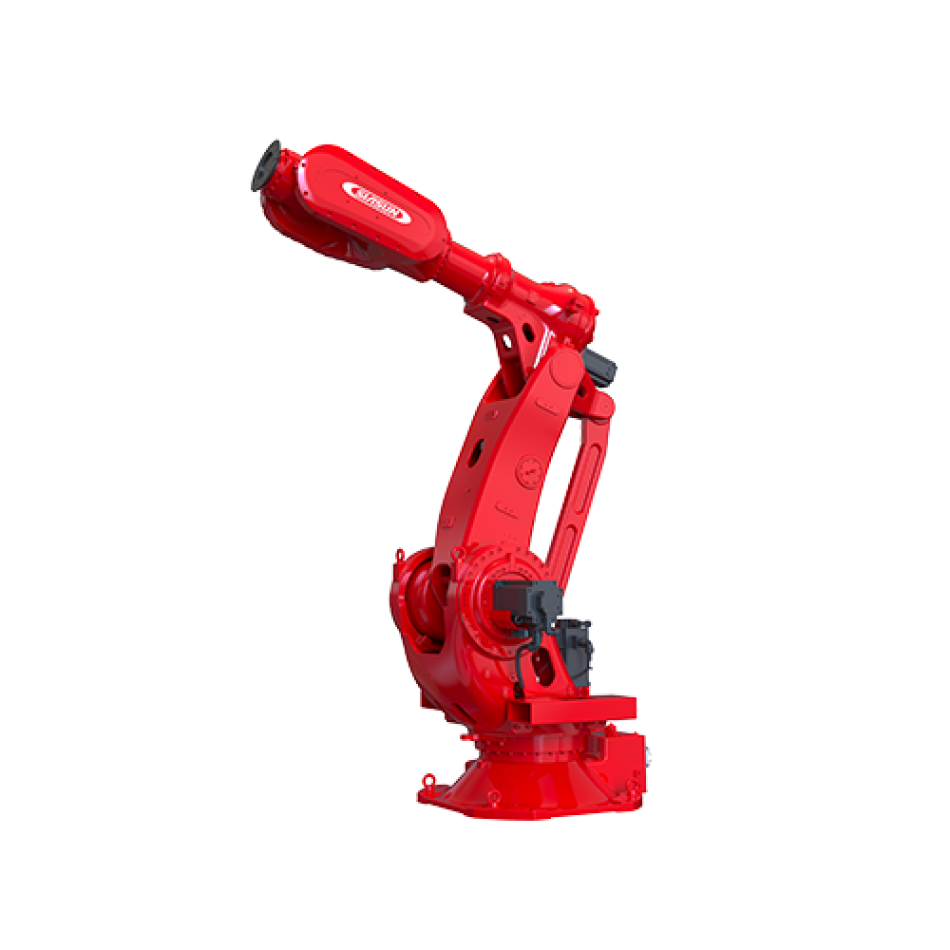

SIASUN SR360A-360/2.83 Heavy-Payload Industrial Robot
