- 280 kg payload across a 3,200 mm reach Long-reach six-axis configuration handles heavy parts over a wide work envelope with ±0.01 mm repeatability.
- Backlash-free J5 axis The J5 axis uses a backlash-free reducer solution that delivers superior overall rigidity and reduces start-stop vibration.
- Over 10% faster spot-welding rhythm SIASUN's self-developed high-speed, high-torque motors increase spot-welding rhythm by more than 10%.
- No-counterweight body design Eliminating the counterweight reduces high-frequency moving parts, lowering failure probability and simplifying maintenance.
- Integration-ready control cabinet Supports mainstream communication protocols and reserves space for external axis drivers, easing system integration and line deployment.
- IP67-rated wrist Wrist protection to IP67 suits welding, gluing, and handling duty in harsh industrial conditions.
الوصف

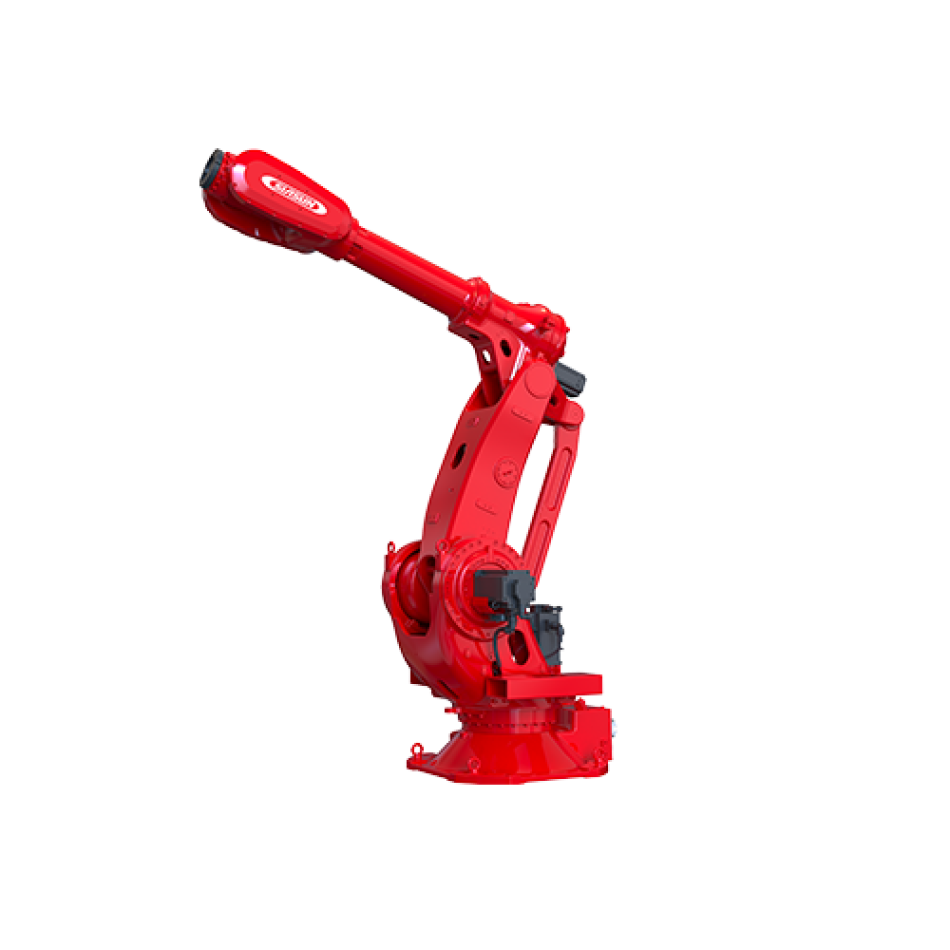

The SIASUN SR360A-280/3.20 is a six-axis industrial robot that pairs a 280 kg payload with an exceptionally long 3,200 mm reach while holding repeatability of ±0.01 mm. The platform is engineered around four goals — high rigidity, high speed, easy maintenance, and easy deployment. A backlash-free gearbox on the J5 axis stiffens the whole machine and suppresses start-stop vibration, while SIASUN's self-developed high-speed, high-torque motors lift spot-welding rhythm by more than 10%. The wrist carries an IP67 protection rating for demanding production environments.
Serviceability and integration are designed in from the start: the body uses a no-counterweight architecture that removes high-frequency moving parts and lowers failure probability, and the control cabinet supports mainstream communication protocols while reserving space for external axis drivers, simplifying system integration and production-line deployment. Typical applications include handling, assembly, gluing, machine loading and unloading, and spot welding, with SIASUN platform case studies spanning automotive welding assembly lines, LCD TV manufacturing, automated carton palletizing, and intelligent welding systems for ships and engineering machinery.
الميزات
المواصفات
| Brand | SIASUN |
|---|---|
| Model | SR360A-280/3.20 |
| Payload | 280 kg |
| Reach | 3200 mm |
| Repeatability | ±0.01 mm |
| Degrees of Freedom | 6 |
| Protection (Wrist) | IP67 |
| J5 Axis | Backlash-free gearbox |
| Body Design | No-counterweight architecture |
| Control Cabinet | Mainstream protocols, reserved space for external axis drivers |
| Application Area | Handling, assembly, gluing, loading and unloading, spot welding |
الصناعات
الأسئلة الشائعة
It is a six-axis industrial robot from SIASUN's SR360A platform, rated for a 280 kg payload with a 3,200 mm reach and ±0.01 mm repeatability. It combines a backlash-free J5 gearbox, self-developed high-torque motors, and a no-counterweight body design with an IP67-rated wrist.
SIASUN lists handling, assembly, gluing, loading and unloading, and spot welding as its application areas. Platform case studies include automotive welding assembly lines, LCD TV manufacturing, automated palletizing, and intelligent welding systems for ships and engineering machinery.
The two are configurations of the same SR360A platform with different payload-reach balances: the SR360A-280/3.20 carries 280 kg across a longer 3,200 mm reach, while the SR360A-360/2.83 carries a heavier 360 kg payload across a 2,830 mm reach. Choose based on the reach your cell layout requires and the mass of your parts and tooling.
Pricing is provided on request. Submit a quote or inquiry through Robotix Market and our team will respond with current pricing, availability, and shipping details for your location.
The SR360A-280/3.20 is covered by the manufacturer's warranty as provided by SIASUN. Robotix Market ships worldwide — contact us for delivery terms and lead times to your country.
